Laō ceilings
Canopea Leaf

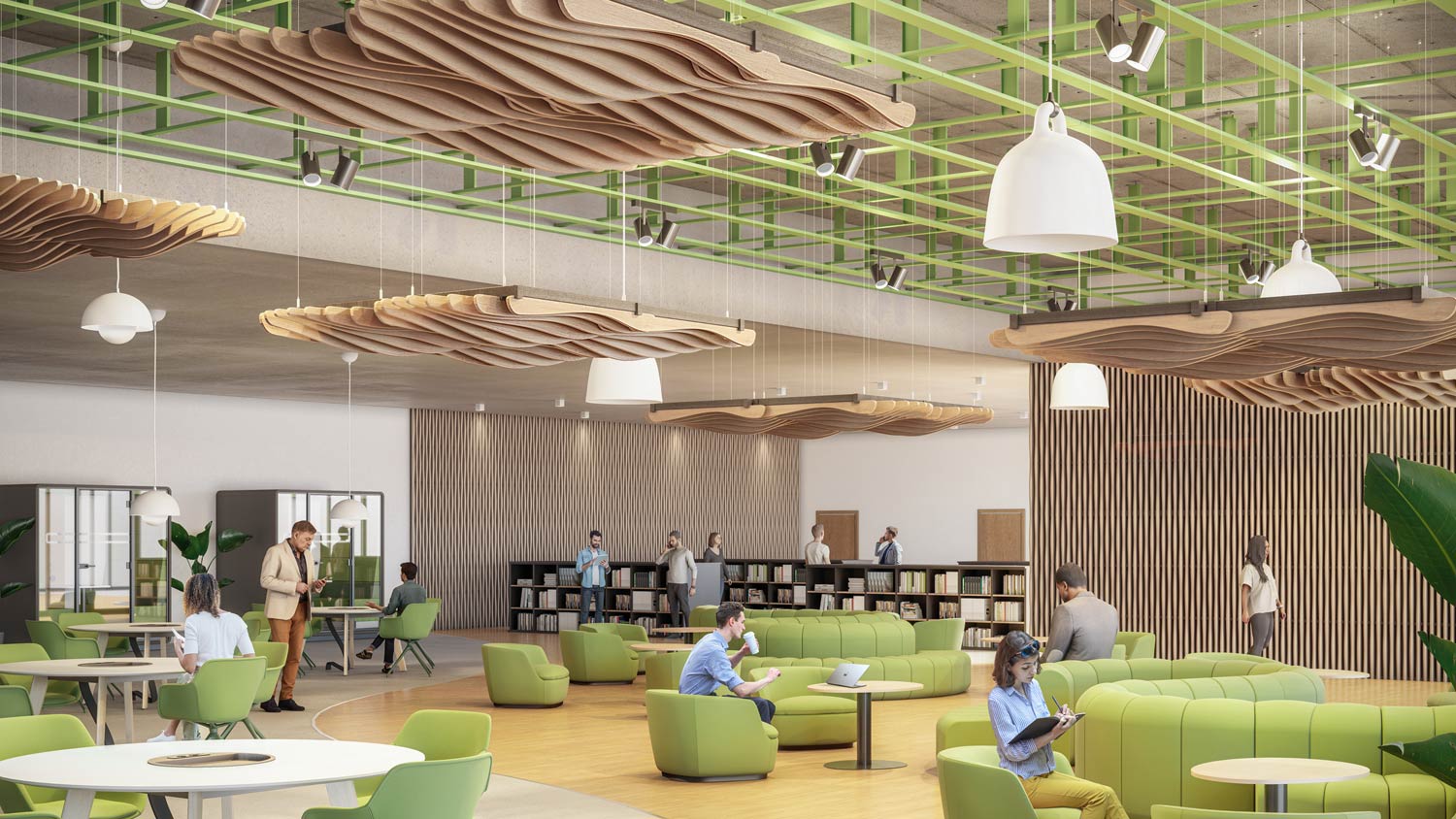

Suspended acoustic island in solid wood
Characteristics
Think about it: Canopea Leaf islands can be interlocked.
|
Panel dimensions |
1450 mm and 800 mm |
|---|---|
|
Slat cross-section |
20 mm (face) x variable height |
|
Slat spacing |
72 mm |
|
Center distance of slats |
92 mm |
|
Black rear counter-slats |
34 x 61 mm |
|
Total thickness |
219 mm |
|
Wood |
Pine, oak, beech |
|
Pine weight |
between 20 and 20.7 kg |
|
Oak weight |
between 21.1 and 21.9 kg |
|
Beech weight |
between 21.8 and 22.5 kg |
Acoustic performance
The various acoustic absorption data were tested in accordance with the recommendations of ISO 354.
CANOPEA LEAF + LR 44 mm
Suspended 30 cm from support
Weighted index: αw = 0.80 (MH)
CANOPEA LEAF + Algae 35 mm
Suspended 30 cm from substrate
Weighted index: αw = 0.75 (MH)
Finish / Reaction to fire (according to NF P 92-501)
Possibility of M1 fireproofing.
Fitting system
Kit of 4 hangers
(rope block + 2m diameter 1mm rope + 180° sphere top mount)
Wood and finishes
Wood
Slat finishes
Varnished finish
Wax color finishes
Other colors on request
Clear varnish required for sensitive environments
Counter-slat finish
Wax color finishes
