Linea Touch Wall _ Configurable
Solid wood acoustic panel for wall cladding
UNIQUE in the image of your projects.
Linea Touch panels are configurable:
Linea Touch allows an infinite number of combinations. Simply play with thicknesses and colors to create a unique pattern.
- 2 blade sections
- A choice of 12 varnish or wax color finishes
Our configurator lets you visualize the composition of a panel
Characteristics
|
Panel dimensions |
1880 x 600 mm and 1265 x 600 mm |
|---|---|
|
Slat cross-section |
20 mm (face) x 42 mm (height) |
|
Slat spacing |
30 mm |
|
Black rear counter-slats |
34 x 45 mm |
|
Total thickness |
69 mm |
|
Wood |
Pine |
|
Openness percentage |
60 % |
Acoustic performance
Weighted index: αw = 0.80
Absorption class: Class B
The various sound absorption data (αp, αw, absorption class) were calculated in compliance with ISO 11654(LINEA + acoustic complement + LR 20mm on E50mm plenum).
Sound absorption was measured in accordance with ISO 354.
Finish / Reaction to fire (to EN 13501-1)
Euroclass B-s1,d0 or B-s2,d0 fire-retardant, depending on finish.
Fitting system
Installation on T24 grid or by screwing
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Rear surface
Acoustic mineral wool tiles with black fleece facing 2,4 Kg / m2 surfaced with black fleece facing (format 600 x 600 mm ; 20 or 22 mm thickness). Not supplied by Laudescher
Not supplied by Laudescher

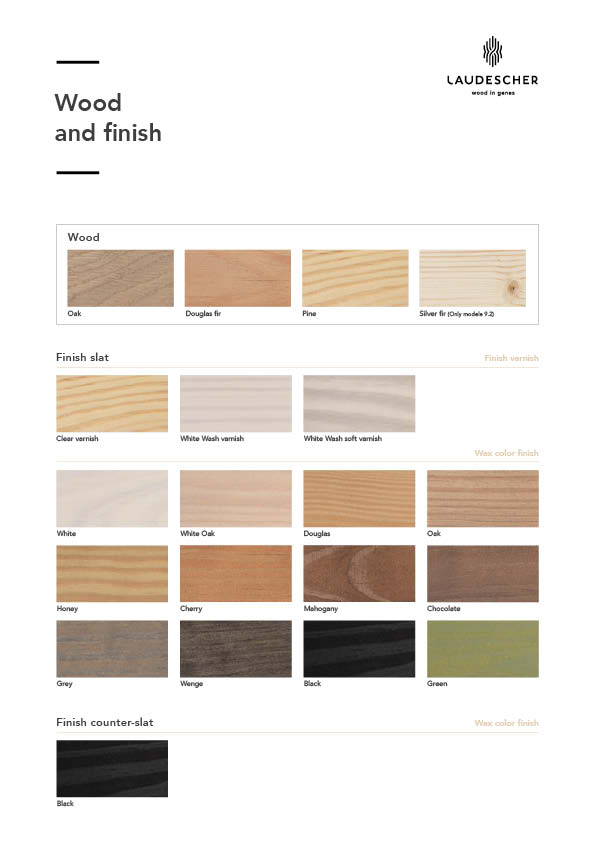

Wood and finish
Wood
Slat finish
Varnished finishes
Wax color finishes
Counter-slate finishing
Wax color finishes
