Linea Touch Ceiling _ Configurable

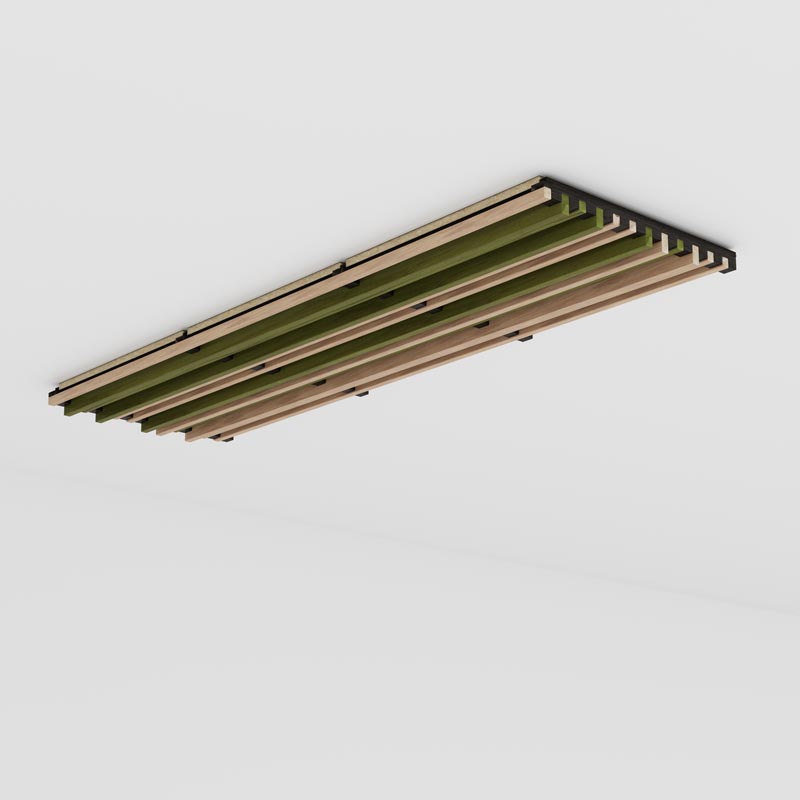

Solid wood acoustic panel for suspended ceilings
UNIQUE in the image of your projects.
Linea Touch panels are configurable:
Linea Touch allows an infinite number of combinations. Simply play with thicknesses and colors to create a unique pattern.
- 2 slates sections
- A choice of 12 varnish or wax color finishes
Our configurator lets you visualize the composition of a panel
Characteristics
Our panels are available in two versions:
- To be installed on T24 grid
- To be screwed onto metal or wooden frame
|
Panel dimensions |
2495 x 600 mm (screw-on only) |
|---|---|
|
Slat cross-section |
20 mm (face) x 42 mm (height) |
|
Slat spacing |
30 mm |
|
Black rear counter-slats |
34 x 45 mm |
|
Total thickness |
69 mm |
|
Type of wood |
Pine |
|
Area density, pine |
10.5 kg/m2 |
|
Openness percentage |
60 % |
Acoustic performance
Weighted index: αw = 0.80
Absorption class: Class B
The various sound absorption data (αp, αw, absorption class) were calculated in compliance with ISO 11654(LINEA + LR 20mm acoustic complement on E50mm plenum).
Finish / Reaction to fire (to EN 13501-1)
Euroclass B-s1,d0 or B-s2,d0 fire-retardant, depending on finish.
Installation
Installation on T24 grid or by screwing
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Back panel
rigid acoustic rockwool slabs (2.4 kg/m²), covered with black fleece finish (size: 600 x 600 mm; thickness: 20 or 22 mm).
Not supplied by Laudescher
Wood and finishes
Wood
Slat finishes
Varnished finish
Wax color finishes
Counter-slat finish
Wax color finishes
