Linea 2.4.3 Lite Ceiling
Solid wood acoustic panel for suspended ceilings
Characteristics
Our panels are available in two versions:

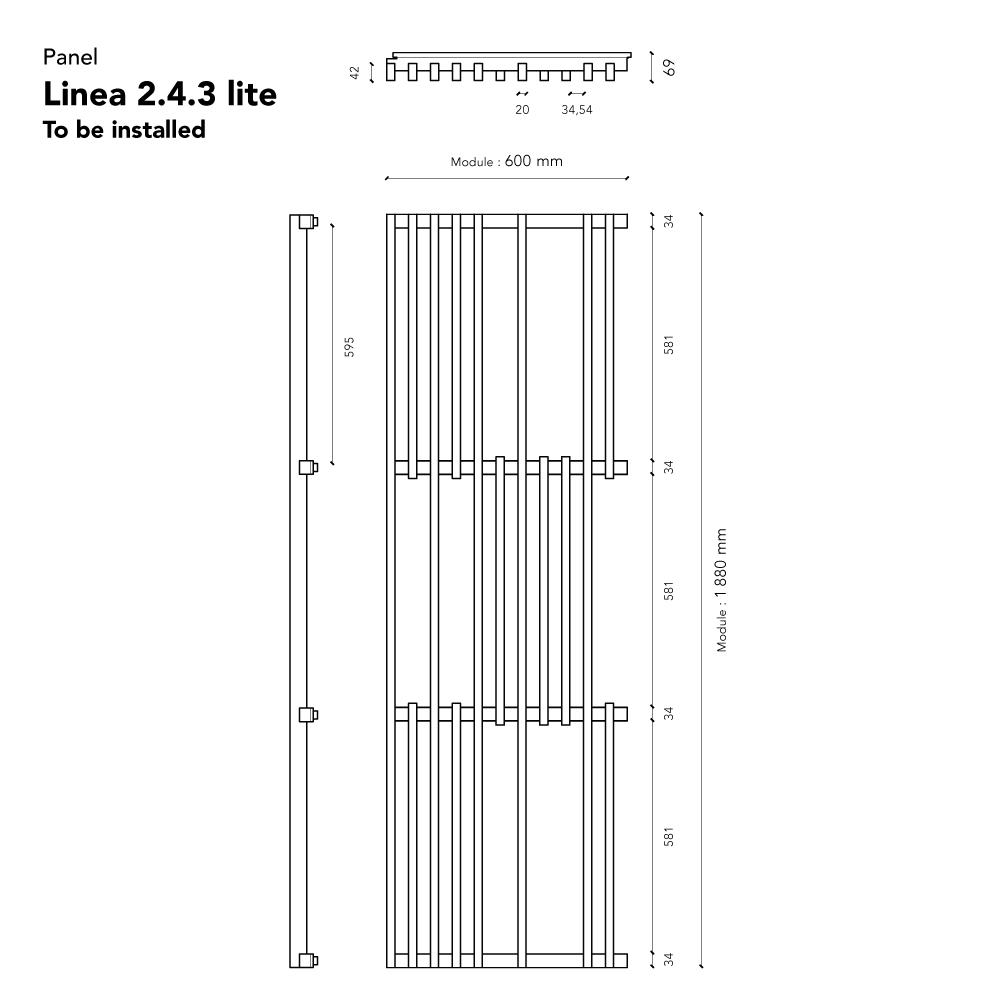

- To be installed on T24 grid

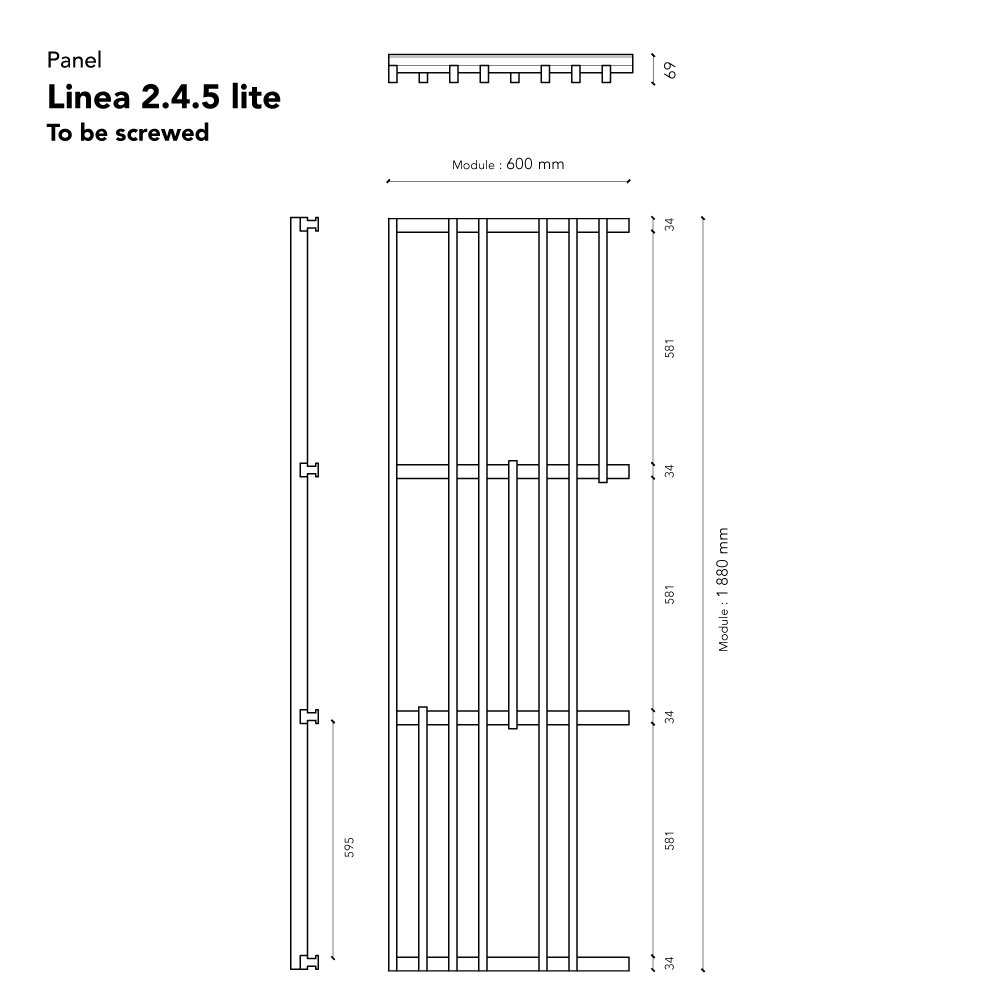

- To be screwed onto metal or wooden frame
|
Panel dimensions |
1880 x 600 mm |
|---|---|
|
Slat cross-section |
20 mm (edge) x 42 mm (height) |
|
Slat spacing |
34.54 mm |
|
Centre distance of slats |
54.54 mm |
|
Black rear counter-slats |
34 x 45 mm |
|
Total thickness |
69 mm |
|
Wood species |
Silver fir, pine, oak |
|
Area density, silver fir |
7.5 kg/m2 |
|
Area density, pine |
8.6 kg/m2 |
|
Area density, oak |
10.1 kg/m2 |
|
Openness percentage |
88 % |
Acoustic performance
Weighted index: αw = 0.9
Absorption class: Class A
Various items of sound absorption data (αp, αw, absorption class) have been calculated
in accordance with standard ISO 11654 (Linea + acoustic complement + 20 mm rockwool on E250 mm plenum).
Finish / Reaction to fire (to EN 13501-1)
Fire-retardant, Euroclass standard B-s1, d0 or B-s2, d0 depending on the type of wood and finish.
Installation
Installation on T24 grid or by screwing
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Back panel
rigid acoustic rockwool slabs (2.4 kg/m²), covered with black fleece finish (size: 600 x 600 mm; thickness: 20 or 22 mm).
Not supplied by Laudescher
Wood and finishes
Wood
Slat finishes
Varnish finish
Fire-treated finishes
Wax color finishes
Other colours available on request
Clear varnish can be added for sensitive environments
Counter-slat finish
Wax color finish
