Linea 4.2.1 Ceiling
Solid wood acoustic panel for suspended ceilings
Characteristics
Our panels are available in two versions:
- To be installed on T24 grid

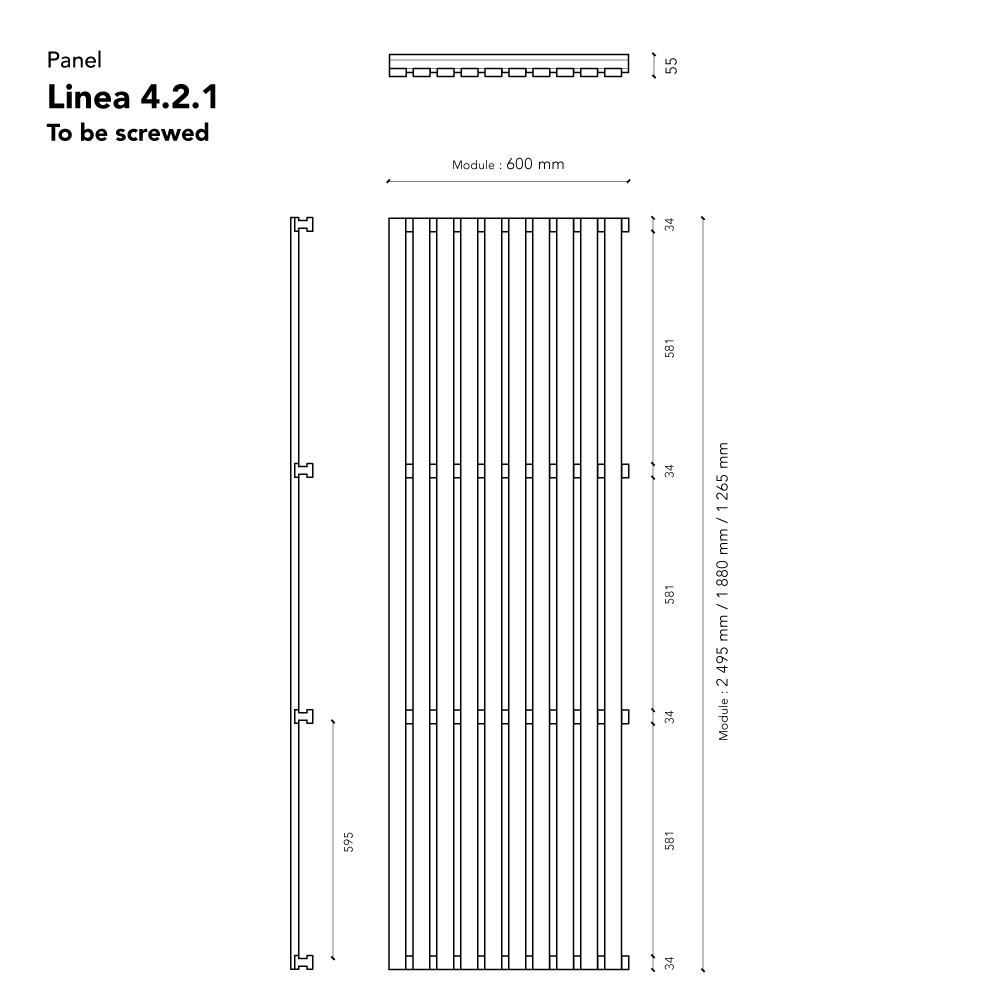

- To be screwed onto metal or wooden frame
|
Panel dimensions |
2495 x 600 mm (screw-on only) |
|---|---|
|
Slat cross-section |
42 mm (face) x 20 mm (height) |
|
Slat spacing |
18 mm |
|
Centre distance of slats |
60 mm |
|
Black rear counter-slats |
34 x 45 mm |
|
Total thickness |
55 mm |
|
Type of wood |
Silver fir, pine, oak |
|
Area density, silver fir |
8.9 kg/m2 |
|
Area density, pine |
11.9 kg/m2 |
|
Area density, oak |
13.8 kg/m2 |
|
Openness percentage |
30 % |
Acoustic performance
Weighted index: αw = 0.55
Absorption class: Class D
The various sound absorption data (αp, αw, absorption class) have been calculated in compliance with ISO 11654(LINEA + LR 20mm acoustic complement on E250mm plenum).
Finish / Reaction to fire (to EN 13501-1)
Fire-retardant, Euroclass standard B-s1, d0 or B-s2, d0 depending on the type of wood and finish.
Installation
Installation on T24 grid or by screwing
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Back panel
rigid acoustic rockwool slabs (2.4 kg/m²), covered with black fleece finish (size: 600 x 600 mm; thickness: 20 or 22 mm).
Not supplied by Laudescher
Wood and finishes
Wood
Slat finishes
Varnish finish
Fire-treated finishes
Wax color finishes
Other colours available on request
Clear varnish can be added for sensitive environments
Counter-slat finish
Wax color finish
