Linea 9.2.3 Ceiling
Solid wood acoustic panel for suspended ceilings
Characteristics
Our panels are available in two versions:
- To be installed on T24 grid

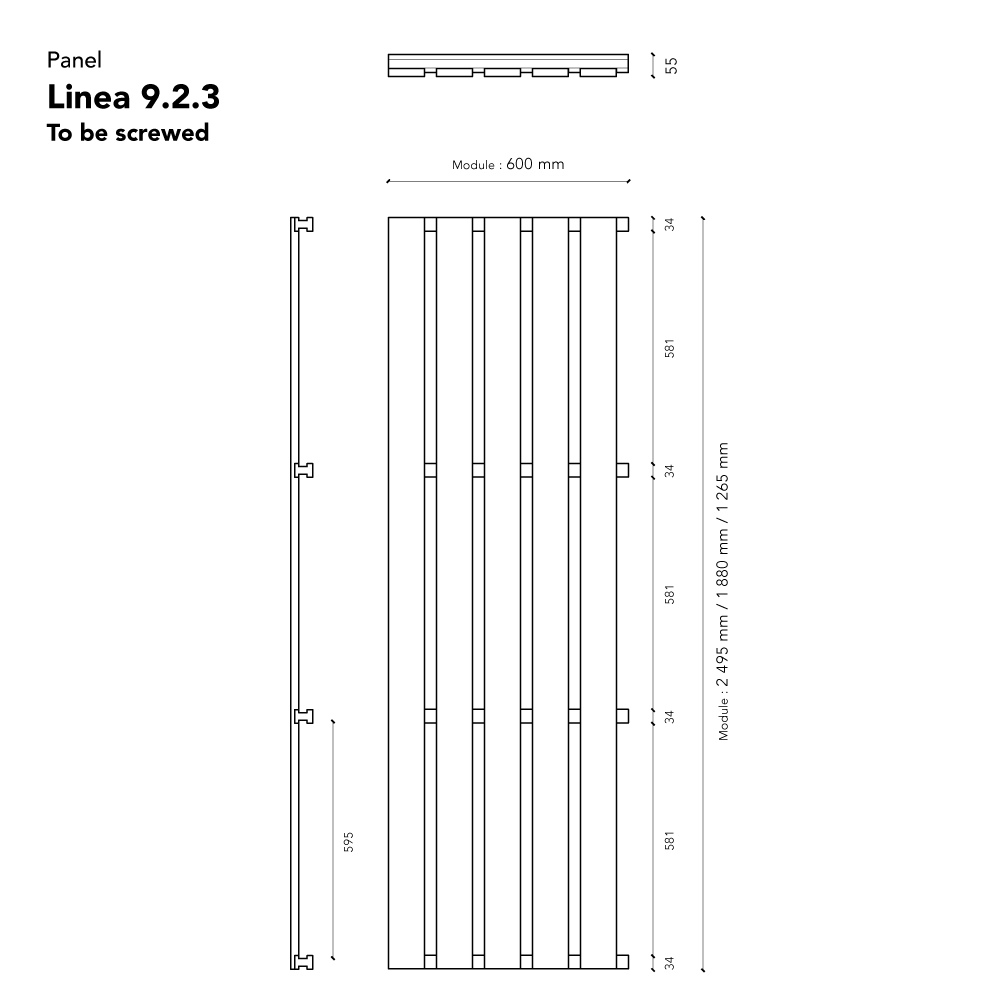

- To be screwed onto metal or wooden frame
|
Panel dimensions |
2495 x 600 mm (screw-on only) |
|---|---|
|
Slat cross-section |
90 mm (face) x 20 mm (height) |
|
Slat spacing |
30 mm |
|
Centre distance of slats |
120 mm |
|
Black rear counter-slats |
34 x 45 mm |
|
Total thickness |
55 mm |
|
Type of wood |
Silver fir, pine, oak |
|
Area density, silver fir |
8.9 kg/m2 |
|
Area density, pine |
12 kg/m2 |
|
Area density, oak |
14.1 kg/m2 |
|
Openness percentage |
25 % |
Acoustic performance
Weighted index: αw = 0.50
Absorption class: Class D
The various sound absorption data (αp, αw, absorption class) have been calculated in compliance with ISO 11654(LINEA + LR 20mm acoustic complement on E250mm plenum).
The sound absorption has been measured in accordance with standard ISO 354.
Finish / Reaction to fire (to EN 13501-1)
Fire-retardant, Euroclass standard B-s1, d0 or B-s2, d0 depending on the type of wood and finish.
Possibility of compliance with Belgian fire standard NBN 713.020.
Fire resistance to NBN 713.020 (SF 30mins)
LINEA 9.2.3 can be adapted to the requirements of Belgian standard NBN 713.020, under the reference LINEA 9.2.3 R, and thus offer 30-minute fire stability.
Installation
Installation on T24 grid or by screwing
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Back panel
rigid acoustic rockwool slabs (2.4 kg/m²), covered with black fleece finish (size: 600 x 600 mm; thickness: 20 or 22 mm).
Not supplied by Laudescher
Wood and finish
Wood
Slate finish
Varnished finish
Wax color finish
Counter-slate finish
Wax color finish
