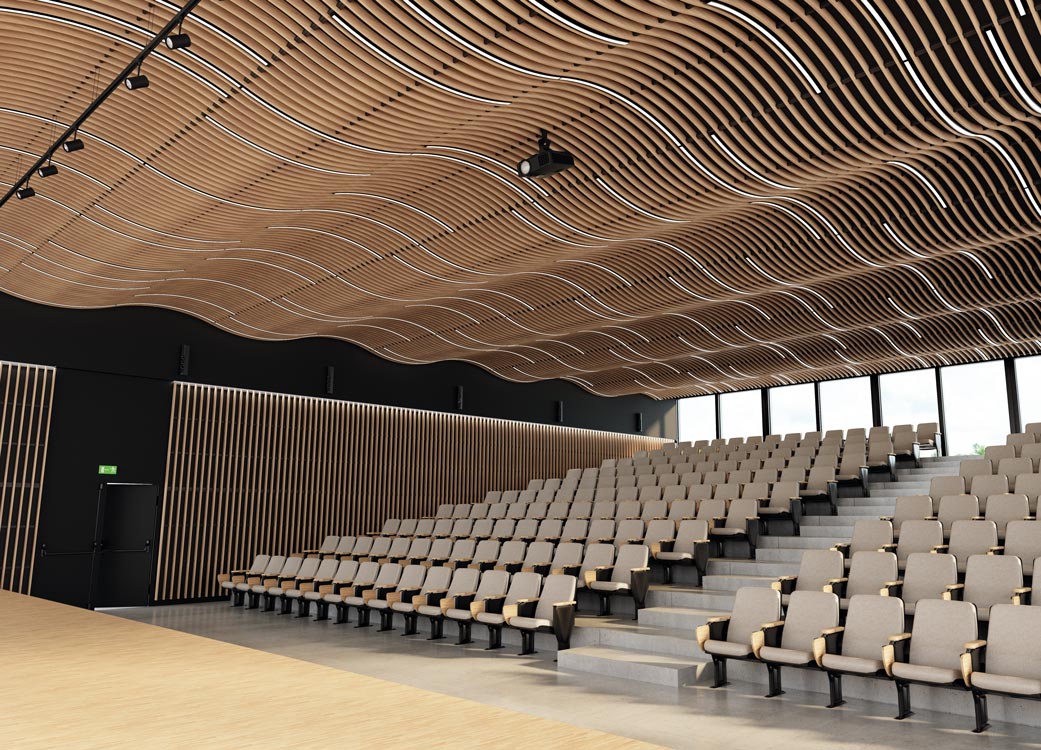

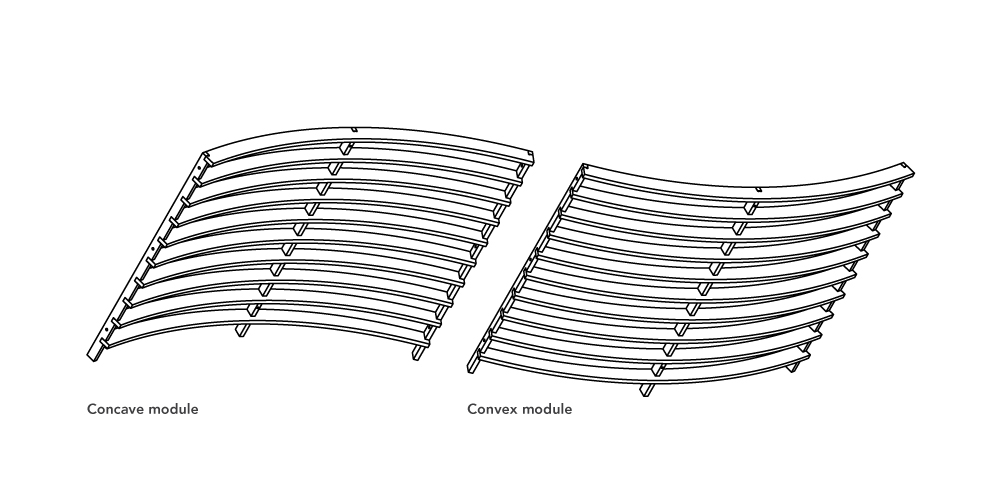

Linea Swell Ceiling
Solid wood acoustic panel for suspended ceilings
Characteristics
- for threaded rod mounting
|

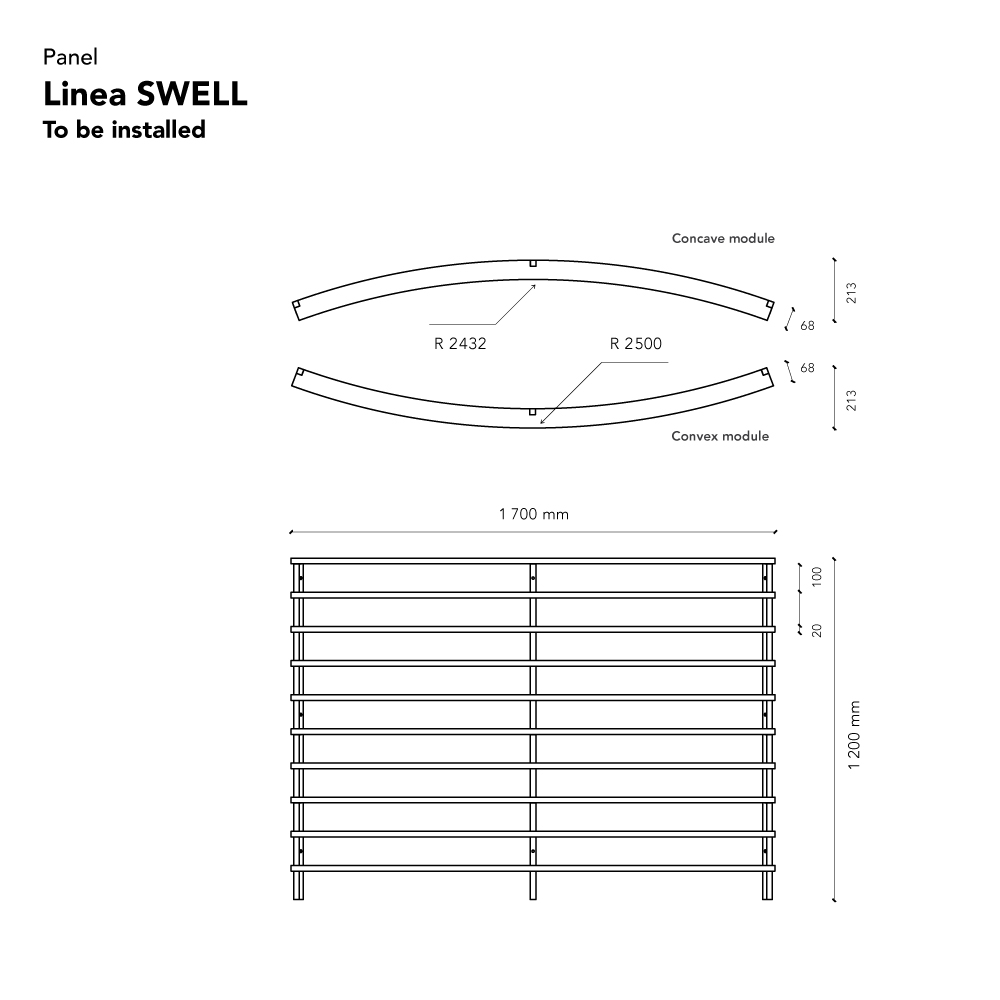

Panel dimensions |
1720 x 1200 mm |
|---|---|
|
Slat cross-section |
20 mm (face) x 68 mm (height) |
|
Slat spacing |
100 mm |
|
Centre distance of slats |
120 mm |
|
Black rear counter-slats |
20 x 42 mm |
|
Total thickness |
213 mm |
|
Timber species |
Slatted pine, slatted finger-jointed oak |
|
Area density, pine |
7.9 kg/m2 |
|
Area density, oak |
9.1 kg/m2 |
|
Openness percentage |
83 % |
Acoustic performance
LINEA + fabric LAU 301 + acoustic complement LR 45 mm on plenum E400mm
Weighted index: αw = 0.95
Absorption class: Class A
LINEA + LAU 301 fabric on E400mm plenum
Weighted index: αw = 0.65
Absorption class: Class C
The various sound absorption data (αp, αw, absorption class) have been calculated in compliance with ISO 11654.
The sound absorption has been measured in accordance with standard ISO 354.
Finish / Reaction to fire (to EN 13501-1)
Possibility of Euroclass B-s2,d0 fireproofing, depending on species and finish.
Installation
Installation on threaded rods:
– in accordance with NF EN 13964
– in accordance with DTU 58-1
Back panel
LAU 301 fabric
Acoustic version with LAU 301 fabric and 45 mm thick rock wool
Rock wool not supplied by Laudescher
Wood and finishes
Wood
Slat finishes
Varnished finish
Wax color finishes
Other colors on request
Clear varnish required for sensitive environments
Counter-slat finish
Wax color finish

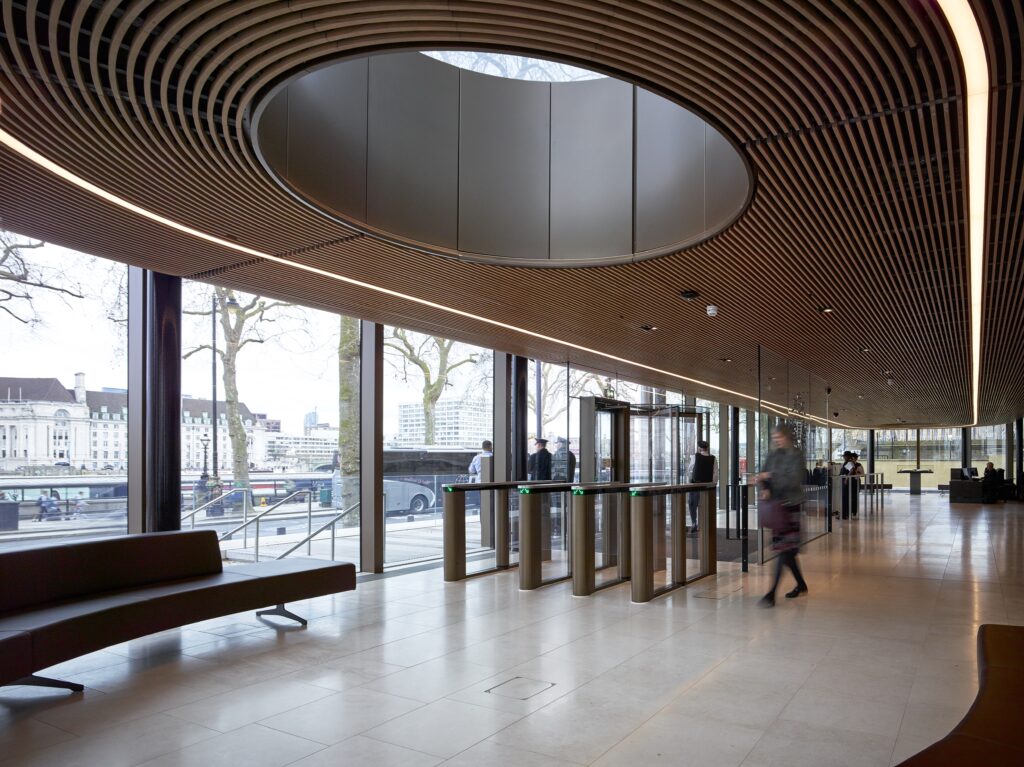

Projects
