Laō ceilings
Pop by Laudescher tiles
Decorative and easy to install:
An easy-to-install acoustic and decorative solution for renovation or new-build projects on standard T24 grid ceilings.
- 2 models: edges slats 2.4.6 or flat slats 4.2.4
- Wood: pine

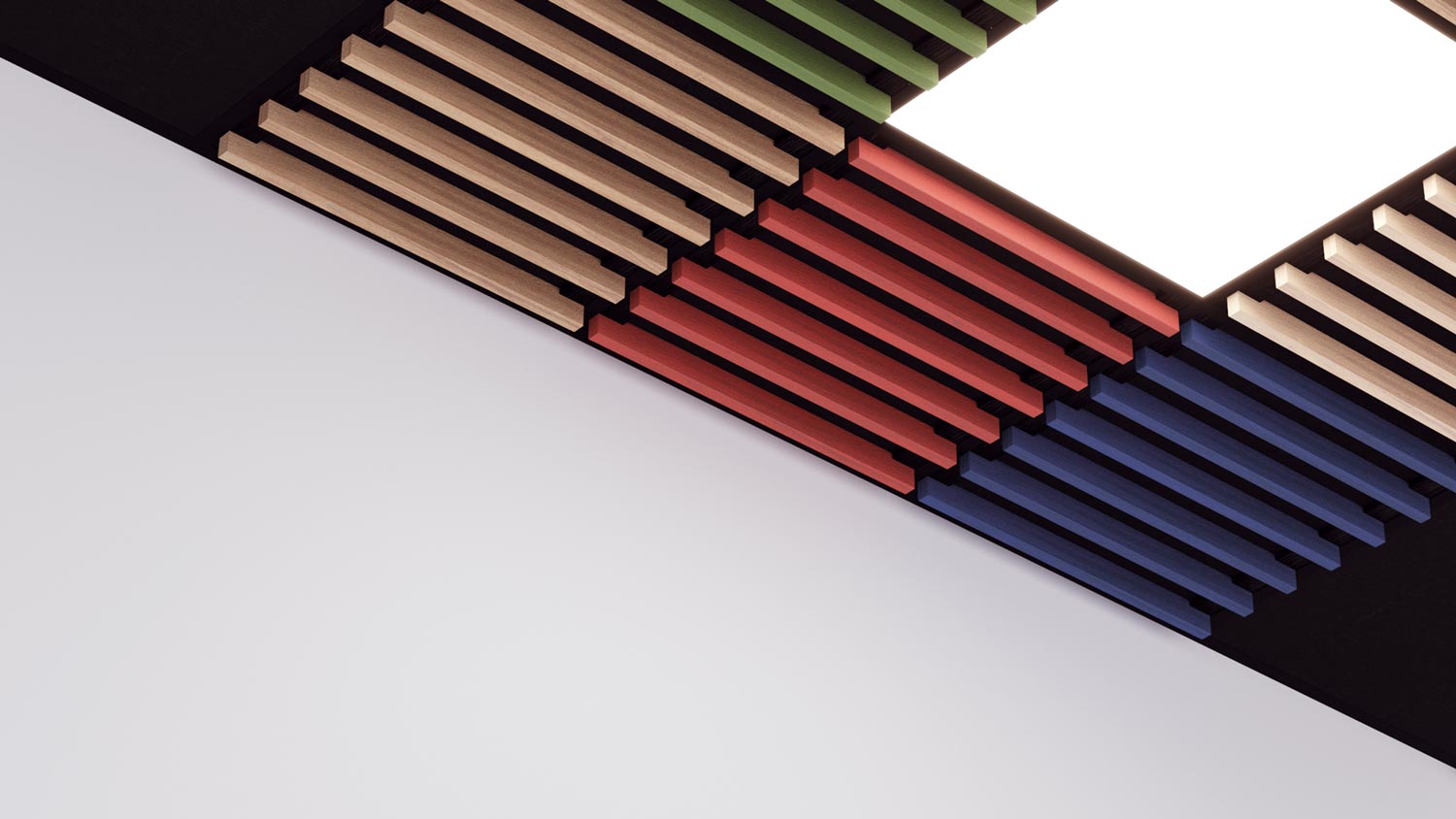

- 5 wax finishes for slats: Douglas fir, white oak,
organic, terracotta, indigo - 2 finishes for counter-slats and PET insulation (optional):
white or black
Characteristics
Pop 2.4.6 with black counter-slats and optional black PET acoustic insulation
Pop 2.4.6 with white counter-slats and optional white PET acoustic insulation
|
Panel dimensions |
595 x 575 mm |
|---|---|
|
Number of slats |
7 |
|
Slat cross-section |
20 mm (edge) x 42 mm (height) |
|
Slat spacing |
65.71 mm |
|
Center distance of slats |
85.71 mm |
|
Black rear counter-slats |
20 x 42 mm |
|
Tile weight |
3.2 kg approx. |
|
Total thickness |
52 mm |
|
Wood |
Pine |
|
Surface mass (pine) |
8.50 kg/m2 |
|
Openness percentage |
76 % |
Acoustic performance
Pop + LR 20mm acoustic complement on E250mm plenum
Weighted index: αw = 0.90
Absorption class: Class A
The various acoustic absorption data (αp, αw, absorption class) have been calculated in compliance with ISO 11654.
Acoustic absorption PET 12 mm Texfel alone
UNE-EN ISO 354:2004: up to αw = 1 (-)
EN ISO 11654: Class A
Finish / Reaction to fire (to EN 13501-1)
Tile only Euroclasse B-s2,d0.
PET acoustic insulation Euroclasse B-s2,d0.
Fitting system
Installation on standard new or existing T24 framing supporting a minimum weight of 15kg/m2.
Rear surface
Optional 12 mm PET insulation
or rigid rockwool acoustic slabs 2.4 Kg / m2 covered with black fleece (size 600 x 600 mm; thickness 20 or 22 mm)
Not supplied by Laudescher
Pop 4.2.4 with black counter-slats and optional black PET acoustic insulation
Pop 4.2.4 with white counter-slats and optional white PET acoustic insulation
|
Panel dimensions |
595 x 575 mm |
|---|---|
|
Number of slats |
7 |
|
Slat cross-section |
42 mm (face) x 20 mm (height) |
|
Slat spacing |
43.71 mm |
|
Center distance of slats |
85.71 mm |
|
Black rear counter-slats |
20 x 42 mm |
|
Tile weight |
3.2 kg approx. |
|
Total thickness |
30 mm |
|
Wood |
Pine |
|
Surface mass (pine) |
8.50 kg/m2 |
|
Openness percentage |
51 % |
Acoustic performance
Pop + LR 20mm acoustic complement on E250mm plenum
Weighted index: αw = 0.80
Absorption class: Class B
The various acoustic absorption data (αp, αw, absorption class) have been calculated in compliance with ISO 11654.
Acoustic absorption PET 12 mm Texfel alone
UNE-EN ISO 354:2004: up to αw = 1 (-)
EN ISO 11654: Class A
Finish / Reaction to fire (to EN 13501-1)
Tile only Euroclasse B-s2,d0.
PET acoustic insulation Euroclasse B-s2,d0.
Fitting system
Installation on standard new or existing T24 framing supporting a minimum weight of 15kg/m2.
Rear surface
Optional 12 mm PET insulation
or rigid rockwool acoustic slabs 2.4 Kg / m2 covered with black fleece (size 600 x 600 mm; thickness 20 or 22 mm)
Not supplied by Laudescher
Certifications
The wood used in the manufacture of Pop slabs is PEFC* certified, from sustainably managed forests and controlled sources.
Pop slabs have been designed to optimize wood lengths. They therefore contribute to the optimization of materials. They are certified Cradle to Cradle® Bronze level.
*PEFC label – N° PEFC/10-31-2391
Finishes
Slate finishes
Wax color
Counter-slate finishing
PET soundproofing finishes
